Heavy duty commercial / industrial grade CNC controlled fiber laser cutting machine for processing of cutting metals in the HVAC,automotive,aerospace,construction,fabrication,service,military industries etc. Optional rotary attachment available upon request for cutting round,square and rectangular pipe and tube.

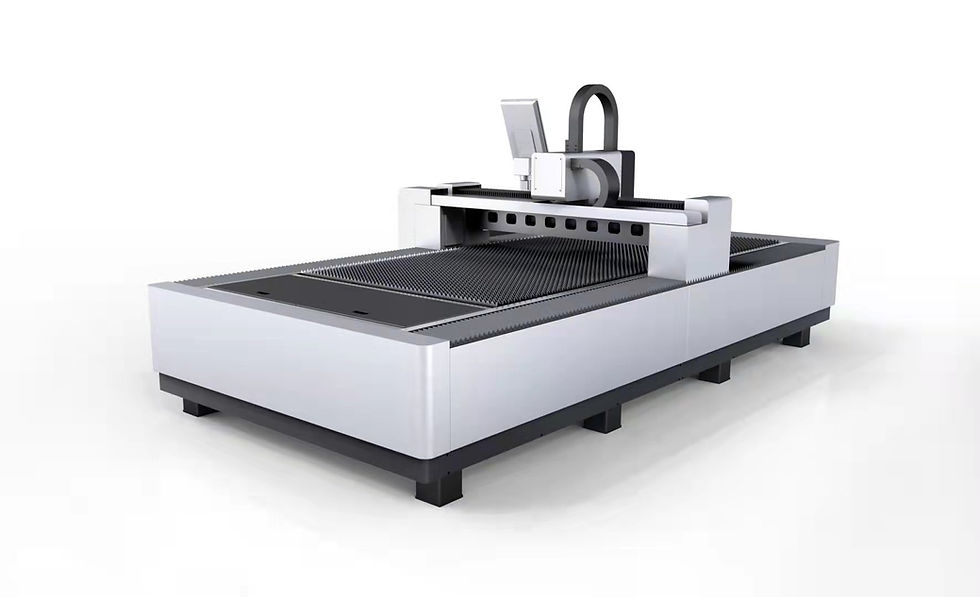

1KW, 1.5KW, 2KW and 3KW Fiber Laser cutting CNC metal Laser machines

SKU: 364215376135191
$67,000.00Price
  • 1.  1KW  Heavy duty CNC fiber laser cutting Machine. This machine has a 51" X 98" BEST SELLING MODEL HAS 60" x 120" CUTTING AREA
    (Custom cutting areas available up to 236.25" X 98.4375")

    2.Our machine beds are fabricated for high rigidity. All frames are segmented welded to adopt an exclusive annealing processing with high-temperature NC electric resistance furnace which ensures our machines last for a long-time in industrial work environments.

    3.All guide rails and screw holes are milled by our professional 5 axis gantry milling machine to ensure high precision and levelness.

    4.Industrial grade powder coating and oven cured components

    5.Machine rack and rails installed using a dial indicator.
    This quality engineering and workmanship results in smooth precise cutting

    6.Our gantry is aircraft-grade cast aluminum to eliminate as many moving parts and ensure stiffness, rigidity and precision.

    7.Our Hiwin rails have a special flange to ensure higher accuracy, and to avoid dust accumulation.

    8.Machine smoke extraction ,reduce the smoke and chippings to harm the cutting head and lens.

    9.Taiwan YYC double driver rack gear.
    The use of helical precision rack pinion ensures smooth precision cutting at high speed.

    10.Japan Yaskawa servo motor with France MOTOVARIO reducer, to muffle noise, high torque, high reducing ratio. Better than other brand in high power cutting.

    11.Independent electronic control cabinet with
    air conditioner

    CONFIGURATIONS:

    Swiss Raytool laser head for metal.
    Can be installed with auto focus to work with different thickness.

    Cypcut Control system and auto nesting software
    Nesting software allows for optimal material usage and cuts down on material waste

    Raycus laser source-best on the market
    with long lifespan up to 150000 hours and high cutting speed.

    Double control water chiller
    To cool the laser source and cutting head

    High-definition pad display

    Auto lubrication system
    lubricates the linear guide rails

    Positioning accuracy- .05mm" Repeatability .03"

    Max speed .65in/sec.

    Fiber lasers do not touch the work surface when cutting nor warp or move the material when cutting, even on thin sheet stock.

    Heavy Duty rotary device option available with high torque servo motor from Japan, to provide strong power for tube turning.
    pneumatic chuck and rack pinion transmission ensure high accuracy

    All machines come with one year full warranty on parts and training videos and user manual along with software. Optional in person setup and training is available at an additional costs to be discussed if needed. Please inquire. Thank you for looking and I look forward to hearing from you and the possibility of doing business with you.
